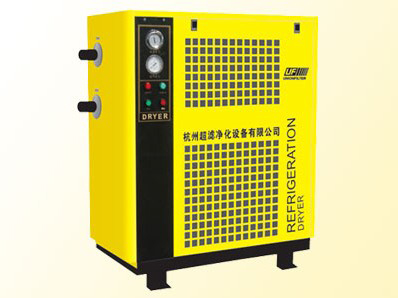

高溫型冷凍式干燥機
| 技術參數 | 選型修正 | ||||||||
|
進氣溫度：額定65℃，最高80℃ 工作壓力：額定0.7Mpa，4.5Mpa以下接受訂貨，0.4-1.0Mpa允許使用。 環境溫度：風冷型（A）：≥2℃，≤38℃； 水冷型（W）：≥2℃，≤45℃ 壓力露點：2-10℃（0.7Mpa） 冷卻水溫：t進≤31℃ t出≤37℃ 冷卻水壓：0.15-0.4Mpa 安裝方式：室內無基礎，混凝土地坪，周邊留空不小于1m 產品標準：JB/JQ209010-88《冷凍干燥機技術條件》 |
應選設備額定處理量=實際進氣的容積流量/βp×βt | ||||||||
| 壓力修正系數βp | |||||||||
|
工作壓力Mpa |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
0.9 |
1.0 |
|
|
βp |
0.65 |
0.8 |
0.88 |
0.92 |
1 |
1.05 |
1.12 |
1.25 |
|
| H系列溫度修正系數βt | |||||||||
|
進氣溫度℃ |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
|
|
βt |
1.25 |
1.15 |
1.10 |
1.05 |
1 |
0.95 |
0.88 |
0.80 |
|
| 注：本選型公式未考慮環境溫度及露點修正,詳見本公司選型手冊。 | |||||||||
規格表
|
規格RD- |
處理量m3/min |
電源 |
壓縮機功率HP |
風機功率W |
進出口接口 |
冷卻水接口 |
重量kg |
|
05HA |
0.6 |
220V/1Ph/50Hz |
0.25 |
38 |
R2 1/2" |
|
50 |
|
1HA |
1.2 |
220V/1Ph/50Hz |
0.38 |
240 |
R2 1" |
|
95 |
|
2HA |
2.3 |
220V/1Ph/50Hz |
1 |
240 |
R2 1" |
|
105 |
|
3HA |
3.6 |
220V/1Ph/50Hz |
1 |
210 |
R2 1" |
|
110 |
|
5HA |
5.2 |
220V/1Ph/50Hz |
1.5 |
270 |
R2 11/2" |
|
150 |
|
6HA/W |
6.5 |
220V/1Ph/50Hz |
2 |
240 |
R2 11/2" |
R2 1/2" |
185 |
|
8HA/W |
8.5 |
220V/1Ph/50Hz |
2.8 |
240 |
R2 2" |
R2 1/2" |
195 |
|
10HA/W |
11 |
220V/1Ph/50Hz |
2.8 |
450 |
R2 2" |
R2 3/4" |
225 |
|
13HA/W |
13.5 |
220V/1Ph/50Hz |
2.8 |
450 |
R2 2" |
R2 3/4" |
235 |
|
15HA/W |
17 |
220V/1Ph/50Hz |
3 |
680 |
DN65 |
R2 1" |
330 |
|
20HA/W |
22 |
380V/3Ph/50Hz |
5.08 |
680 |
DN65 |
R2 1" |
540 |
|
25HA/W |
27 |
380V/3Ph/50Hz |
6 |
680 |
DN80 |
R2 11/2" |
580 |
|
30HA/W |
32 |
380V/3Ph/50Hz |
6.75 |
950 |
DN80 |
R2 11/2" |
660 |
|
40HA/W |
42 |
380V/3Ph/50Hz |
10 |
1350 |
DN100 |
R2 11/2" |
820 |
|
50HA/W |
55 |
380V/3Ph/50Hz |
12 |
1350 |
DN100 |
R2 11/2" |
920 |
|
60HA/W |
65 |
380V/3Ph/50Hz |
15 |
2390 |
DN100 |
Rc 11/2" |
1230 |
|
80HA/W |
85 |
380V/3Ph/50Hz |
20 |
2670 |
DN125 |
Rc 11/2"×2 |
1700 |
|
100HA/W |
110 |
380V/3Ph/50Hz |
25 |
3870 |
DN150 |
Rc 11/2"×2 |
2300 |
|
130HW |
140 |
380V/3Ph/50Hz |
30 |
|
DN150 |
Rc 11/2"×2 |
2470 |
|
150HW |
160 |
380V/3Ph/50Hz |
40 |
|
DN200 |
Rc 11/2"×4 |
2830 |
|
180HW |
190 |
380V/3Ph/50Hz |
45 |
|
DN200 |
Rc 11/2"×3 |
3250 |
|
200HW |
210 |
380V/3Ph/50Hz |
50 |
|
DN200 |
Rc 21/2" |
3500 |
|
230HW |
240 |
380V/3Ph/50Hz |
50 |
|
DN200 |
Rc 21/2" |
3800 |
|
250HW |
260 |
380V/3Ph/50Hz |
60 |
|
DN200 |
Rc 3" |
3930 |
|
280HW |
290 |
380V/3Ph/50Hz |
60 |
|
DN250 |
Rc 3" |
4150 |
|
300HW |
310 |
380V/3Ph/50Hz |
70 |
|
DN250 |
DN100 |
4250 |
|
350HW |
360 |
380V/3Ph/50Hz |
80 |
|
DN250 |
DN100 |
4800 |
|
400HW |
410 |
380V/3Ph/50Hz |
100 |
|
DN300 |
Rc 21/2"×2 |
5260 |
|
450HW |
460 |
380V/3Ph/50Hz |
100 |
|
DN300 |
Rc 21/2"×2 |
5810 |
|
500HW |
510 |
380V/3Ph/50Hz |
120 |
|
DN300 |
Rc 3"×2 |
6480 |
|
550HW |
560 |
380V/3Ph/50Hz |
120 |
|
DN350 |
Rc 3"×2 |
7100 |
